Fire Sprinkler Escutcheons Explained: Purpose, Types, and Maintenance

Fire sprinkler systems consist of many carefully engineered components that work together to provide reliable fire protection. One component that is often overlooked is the fire sprinkler escutcheon. While it may appear to be a simple trim ring around a sprinkler head, an escutcheon serves important functional and aesthetic purposes within a commercial fire sprinkler system.

Understanding what fire sprinkler escutcheons do, the different types available, and how they should be maintained can help commercial property owners, facility managers, contractors, and building managers support reliable fire protection and

maintain compliance with applicable fire safety requirements.

For commercial buildings throughout South Florida, routine fire sprinkler inspection services help ensure escutcheons remain properly installed and do not interfere with sprinkler performance.

Quick Answer

A fire sprinkler escutcheon is the trim piece installed around a sprinkler head where it passes through a ceiling or wall. It helps provide a finished appearance, covers the opening around the sprinkler, and, depending on the sprinkler type, supports proper installation. Damaged, missing, or improperly installed escutcheons should be professionally evaluated to help maintain reliable system performance.

What Is a Fire Sprinkler Escutcheon?

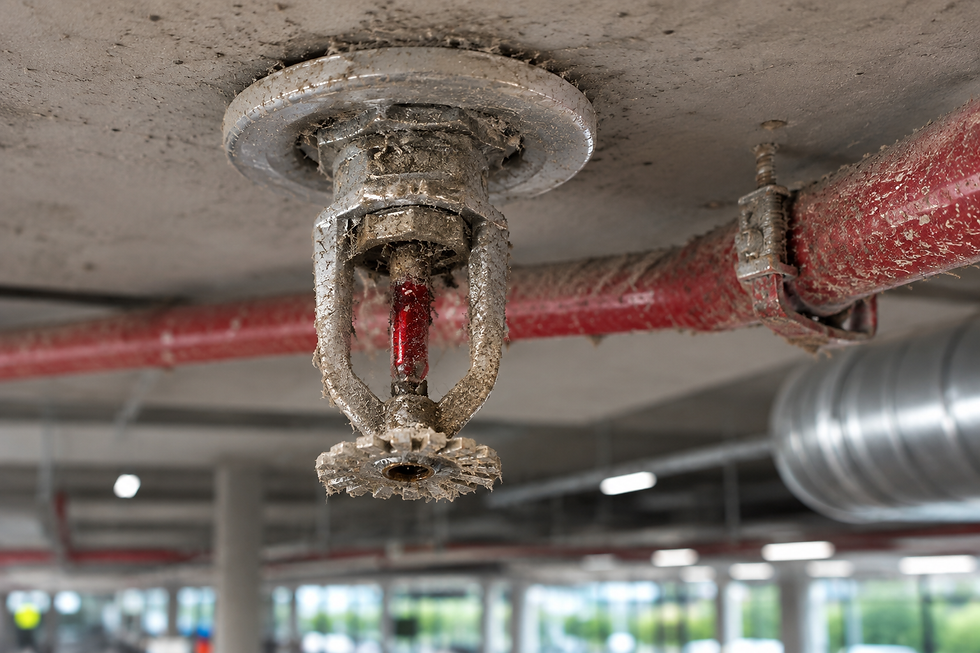

A fire sprinkler escutcheon is a metal trim ring or decorative plate installed around the opening where a sprinkler head passes through a ceiling or wall.

Although it improves the finished appearance of the installation, an escutcheon also serves practical purposes within the fire sprinkler system.

Depending on the sprinkler design, the escutcheon may help:

• Cover gaps around the sprinkler

• Provide a clean finished appearance

• Protect the ceiling opening

• Support proper sprinkler positioning

• Accommodate minor building movement in certain applications

Escutcheons are manufactured to work with specific sprinkler models and should not be substituted with non-approved components during any fire sprinkler installation.

Why Fire Sprinkler Escutcheons Are Important

Escutcheons are more than decorative trim pieces.

Properly installed escutcheons contribute to a professional installation while helping preserve the intended relationship between the sprinkler and the finished ceiling or wall.

Routine inspections often include verifying that escutcheons are:

• Properly seated

• Undamaged

• Compatible with the sprinkler

• Free from paint or unauthorized modifications

• Appropriate for the installed sprinkler type

Common Types of Fire Sprinkler Escutcheons

Several escutcheon designs are used in commercial fire sprinkler systems depending on the sprinkler orientation and ceiling construction.

Flat Escutcheons

Flat escutcheons sit flush against the ceiling or wall surface.

• Common Applications: Finished office ceilings, retail spaces, educational facilities, healthcare buildings

• Advantages: Clean appearance, simple installation, suitable for many finished ceiling applications

Adjustable Escutcheons

Adjustable escutcheons consist of two pieces that allow for slight variations in sprinkler position relative to the finished ceiling.

• Common Applications: Buildings with suspended ceilings, renovation projects, commercial tenant improvements

• Advantages: Accommodates minor installation tolerances, provides a finished appearance after ceiling work

Deep Escutcheons

Deep escutcheons are designed for installations where the sprinkler extends farther from the finished ceiling.

• Common Applications: Thicker ceiling assemblies, certain renovation projects, specialized ceiling configurations

• Advantages: Helps provide an appropriate finished appearance where additional depth is required

Fire Sprinkler Orientations and Escutcheon Applications

The type of sprinkler installed often determines the escutcheon used.

Pendent Sprinklers

Pendent sprinklers extend below the piping and discharge water downward.

• Typical Applications: Offices, retail stores, schools, healthcare facilities

• Escutcheon Considerations: Escutcheons help provide a finished appearance around the sprinkler where it passes through the ceiling. Standard pendent sprinklers should not be installed on dry pipe systems because trapped water may freeze and obstruct water flow.

Upright Sprinklers

Upright sprinklers are installed above exposed piping. Comparing pendent vs. upright fire sprinklers can help clarify which setup fits your ceiling layout.

• Typical Applications: Warehouses, manufacturing facilities, mechanical rooms

• Escutcheon Considerations: Because upright sprinklers are generally installed below exposed structural ceilings, escutcheons are often not required.

Sidewall Sprinklers

Sidewall fire sprinklers discharge water horizontally from wall-mounted positions.

• Typical Applications: Hallways, hotels, office buildings

• Escutcheon Considerations: Escutcheons provide a finished appearance where the sprinkler passes through the wall.

Recessed Sprinklers

Recessed sprinklers are partially installed within the ceiling.

• Typical Applications: Commercial offices, healthcare facilities, educational buildings

• Escutcheon Considerations: Specially designed recessed escutcheons are used to maintain the intended installation depth and finished appearance.

Concealed Sprinklers

Concealed sprinklers remain hidden behind manufacturer-approved cover plates until activation. Read our breakdown on concealed vs. recessed fire sprinklers for visual and functional differences.

• Typical Applications: Hotels, condominium common areas, high-end commercial interiors

• Escutcheon Considerations: Concealed sprinklers use approved decorative cover plates rather than traditional exposed escutcheons. Only manufacturer-approved components should be used.

Common Problems With Fire Sprinkler Escutcheons

Routine inspections often identify issues such as:

• Missing Escutcheons: Missing trim rings leave visible gaps around the sprinkler opening and may indicate previous maintenance or ceiling work.

• Loose Escutcheons: Escutcheons that have shifted away from the ceiling may require evaluation.

• Painted Escutcheons: While paint on decorative trim may not always affect sprinkler operation, learn why sprinkler heads should never be painted or modified.

• Damaged Escutcheons: Bent, dented, or distorted escutcheons may indicate impact damage or improper installation.

• Improper Replacement Parts: Using non-approved escutcheons or mismatched components can affect the appearance and intended installation of the sprinkler assembly.

How Ceiling Renovations Affect Escutcheons

Ceiling projects frequently involve:

• New ceiling tiles

• Suspended ceiling installation

• Lighting upgrades

• HVAC improvements

• Office remodeling

It is important to understand how building renovations impact existing fire sprinkler systems. After renovation work, escutcheons should be inspected to verify that they:

• Remain properly positioned

• Fit the finished ceiling correctly

• Match the installed sprinkler

• Show no signs of damage

Signs Your Fire Sprinkler System Should Be Evaluated

Schedule a professional inspection if you notice:

• Missing escutcheons

• Loose trim rings

• Ceiling gaps around sprinkler heads

• Sprinklers that appear crooked

• Damaged sprinkler assemblies

• Ceiling renovations have recently been completed

• Fire marshal inspections identify deficiencies

Review our guide on signs it's time to service your fire sprinkler system to stay proactive.

Comparison Table: Common Escutcheon Types

Escutcheon Type	Typical Installation	Common Applications	Primary Purpose
Flat	Flush with the finished surface	Offices, retail, schools	Covers ceiling or wall openings with a clean appearance
Adjustable	Two-piece design	Renovations, suspended ceilings	Accommodates minor installation variations
Deep	Extended profile	Thick ceiling assemblies, specialized installations	Covers larger recessed openings
Recessed Escutcheon	Used with recessed sprinklers	Finished commercial ceilings	Supports proper recessed sprinkler installation
Concealed Cover Plate	Used with concealed sprinklers	Hotels, finished interiors	Conceals the sprinkler until activation using manufacturer-approved components

Compliance Requirements

Commercial fire sprinkler systems should be inspected and maintained in accordance with applicable fire protection requirements, including:

• NFPA 13 installation requirements

• NFPA 25 inspection requirements in Florida

• Florida Fire Code

• Local fire marshal inspection requirements

• Preventive maintenance programs

Routine inspections help verify that escutcheons and sprinkler assemblies remain in good condition and continue to support reliable system performance.

Common Mistakes to Avoid

• Using Non-Approved Escutcheons: Replacement escutcheons should be compatible with the installed sprinkler model.

• Painting Sprinkler Heads During Ceiling Work: Sprinkler heads should never be painted or modified during renovation projects.

• Ignoring Loose or Missing Escutcheons: Visible gaps around sprinkler heads should be evaluated during routine maintenance.

• Completing Ceiling Renovations Without Inspecting Sprinklers: Renovation work can affect sprinkler positioning and associated components.

• Assuming Escutcheons Are Only Decorative: Although they improve appearance, escutcheons also play a role in supporting proper sprinkler installation.

When to Contact a Fire Sprinkler Professional

Professional guidance is recommended when:

• Escutcheons are missing or damaged.

• Ceiling renovations have been completed.

• Sprinkler heads require replacement.

• Gaps appear around sprinkler openings.

• Inspection reports identify deficiencies.

• Questions arise regarding sprinkler assemblies or compliance.

A licensed fire sprinkler contractor can inspect sprinkler assemblies, verify that approved components are installed, and determine whether repairs or replacements are necessary. If an urgent failure occurs, contact 24/7 emergency services. You can also learn how to choose the right fire sprinkler contractor in South Florida.

Key Takeaways

• Fire sprinkler escutcheons are trim components installed around sprinkler heads where they pass through ceilings or walls.

• They provide a finished appearance while supporting proper sprinkler installation in many applications.

• Flat, adjustable, deep, recessed, and concealed designs are used depending on the sprinkler type and ceiling construction.

• Missing or damaged escutcheons should be professionally evaluated.

• Ceiling renovations should always include an inspection of sprinkler assemblies and associated components.

• Routine maintenance helps support reliable fire protection and ongoing compliance.

Frequently Asked Questions

What is the purpose of a fire sprinkler escutcheon?

A fire sprinkler escutcheon covers the opening where a sprinkler passes through a ceiling or wall, provides a finished appearance, and helps support proper installation for many sprinkler assemblies.

Are escutcheons required on every sprinkler?

Not always. Their use depends on the sprinkler orientation and installation. For example, upright sprinklers installed below exposed ceilings often do not use escutcheons.

Can I replace a damaged escutcheon myself?

Replacement components should be compatible with the installed sprinkler assembly, and a licensed fire sprinkler contractor should evaluate damaged sprinkler components. Explore the complete guide to fire sprinkler repair services to see why professional repairs are crucial.

Do missing escutcheons affect inspections?

Missing escutcheons may be identified during routine inspections and should be evaluated to determine whether corrective action is needed.

Can ceiling renovations damage escutcheons?

Yes. Ceiling work may loosen, damage, or misalign escutcheons and should be followed by a professional sprinkler inspection. Learn why ceiling modifications may require fire sprinkler adjustments.

Can sprinkler escutcheons be painted?

Escutcheons should not be altered in a way that affects their fit or function. Most importantly, sprinkler heads themselves should never be painted after manufacture.

How often should sprinkler assemblies be inspected?

Inspection frequency depends on the system type and applicable requirements, but routine inspections help identify damaged escutcheons, sprinkler deficiencies, and other conditions that could affect long-term system reliability. Read about annual vs. quarterly fire sprinkler inspections.

Conclusion

Fire sprinkler escutcheons may be one of the smallest visible components of a commercial fire protection system, but they contribute to a professional installation and help support the proper positioning of many sprinkler assemblies. Whether installed on pendent, sidewall, or recessed sprinklers, these trim components should remain undamaged, properly fitted, and compatible with the sprinkler they serve.
